The LS-800N is OPTOKON test equipment designed for thorough fiber line diagnostics. The light source is available in various wavelengths. The model with one or two outputs with two light sources on each port provides a maximum of 4 wavelengths in one device. The Light source is equipped FC output adaptor as standard. The changeable adaptor design allows the simple exchange of optical connectors according to actual needs.
Automatic wavelength detection
The automatic wavelength detection (AWD) mode enables to use the OPTOKON Light Source and Power Meter without manually switching the measured wavelength and prevents faulty measurement.
Cycle mode
The cycle mode allows the device to automatically toggle between available wavelengths.
Features:

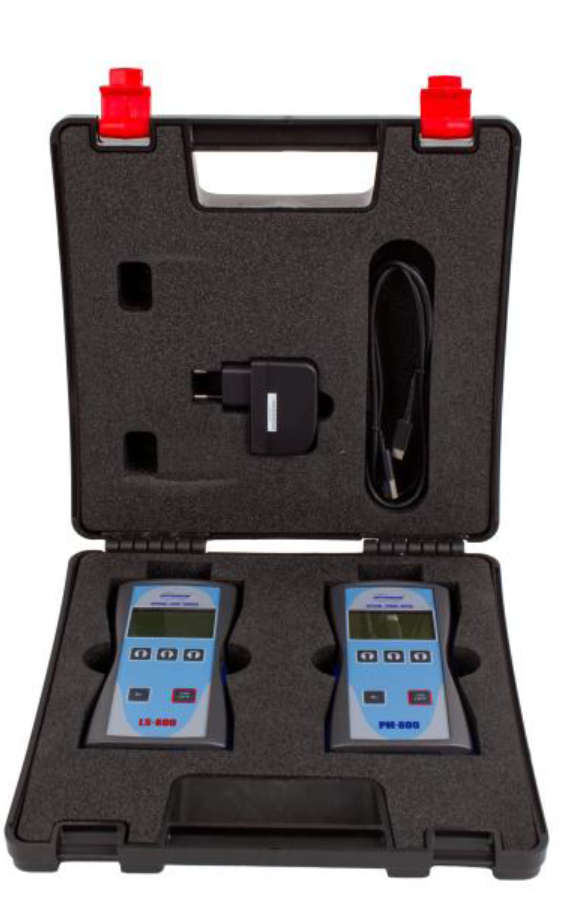

Standard accessories:
Output adapters
Options:
Application
Technical specifications:
| General specifications | Value | Unit | Note |
| Dimensions | 165 x 80 x 40 | mm | with TE-ALS-FC adapter |
| Weight | 250 | g | with battery |
| Operation temperature | -10 to + 50 | °C | |
| Storage temperature | -40 to + 70 | °C | |
| Humidity (non- condensing) | 0 to 95 | % |
Light source specifications:
| Code marking | Wavelength 1
[nm] | Output power 2
[dBm] | Stability3 [dB] | Note |
| 60 | 650 | 0 | N/A | Visible light |
| 85 | 850 | 0 | ± 0.03 dB | Multimode fibers testing |
| 30 | 1300 | 0 | ± 0.05 dB | |
| 31 | 1310 | 0 | ± 0.05 dB |
Single mode fibers testing |
| 49 | 1490 | 0 | ± 0.05 dB | |
| 55 | 1550 | 0 | ± 0.05 dB | |
| 62 | 1625 | 0 | ± 0.05 dB |
Ordering code:
| LS-800N | – | ʎ1- ʎ2 | / | ʎ1- ʎ2 |
| port 1, ʎ1 | port 2, ʎ1 | |||
| port 1, ʎ2 | port 2, ʎ2 | |||
| Standard models: | |
| LS-800N-31-55 | port: 1310 nm + 1550 nm |
| LS-800N-65/85 | port1: 650 nm. port2: 850 nm |
| LS-800N-85-30 | port: 850 nm + 1300 nm |
| LS-800N-85-30/31-55 | port1: 850 nm + 1300 nm, port2: 1310 nm + 1550 nm |
